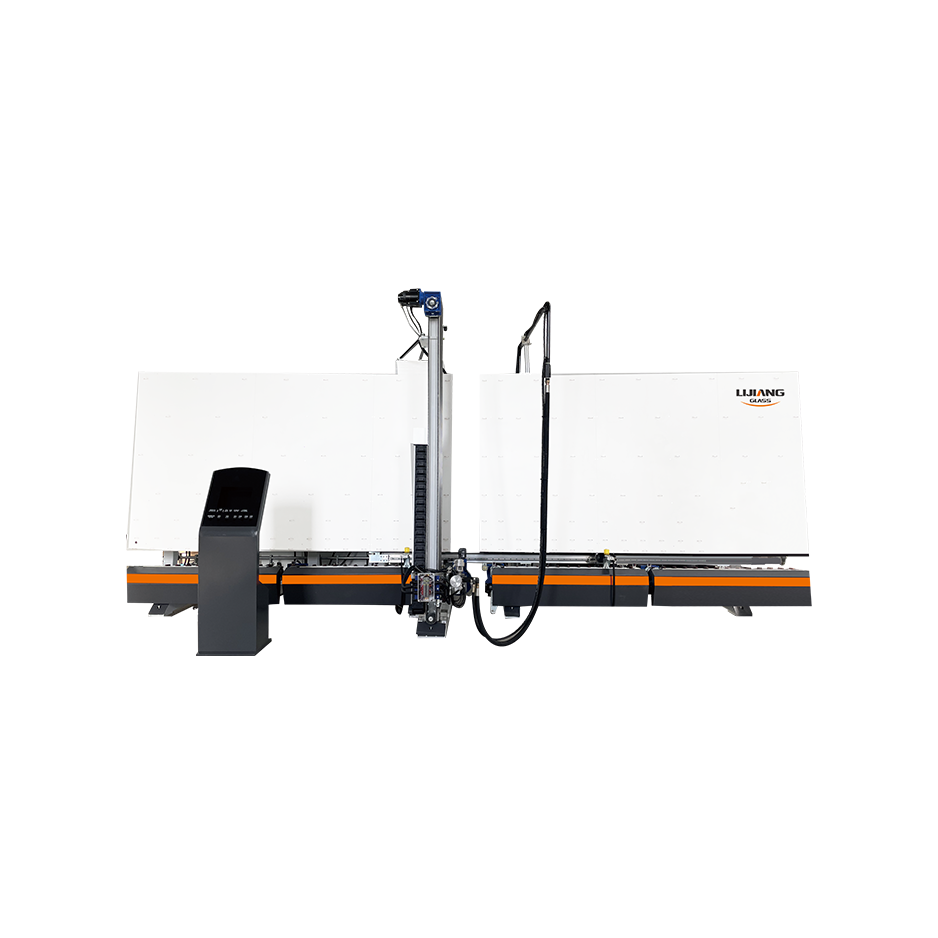

Automatic Insulating Glass Sealing Robot

LJTJ2540
Automatic Insulating Glass Sealing Robot

Max.glass size:2000*3000mm/2500*4000mm/3300*7000mm
Glass thickness:12-56mm/12-56mm/12-80mm
Working speed:5-40m/min

Automatic Insulating Glass Sealing Robot can coat double glass, shaped glass, step glass, triple glass

Get Quote Be an Agent

•Japan Yaskawa servo control system, full automatic and high-efficiency
•Automatic memory function, no need to input parameters repeatedly
•Automatically repair glass corners with scraper and roller
•Machine has four sections, can store glass
•Automatically measure glass size and glue depth, adjust sealing speed
•Adopt timing belt, smooth transfer and accurate position
•Every auto-function is with manual operation
•Can coat double glass, shaped glass, step glass, triple glass
•One set of booster pump controls two groups of sealants
•Automatic timing sealant discharging function
•The sealant mixing system adopts anti-blocked structure and is easy to clean

Feature of Automatic Insulating Glass Sealing Robot

  • Unique glue system

Equipped with a single component A and a single component B.


  • Double Glue Systems

Equipped with two sets of A-components and two sets of B-components, it can be used for two kinds of sealants: silicone rubber, polysulfide rubber and silicone structural adhesive.


  • Reback Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.


  • The Device of Sealing Part

Adopt Japan YASKAWA servo motor to control the sealing part with 360°rotating. Setting scraper blade to scrape out extra glue and no need to repair glass corners by second time.


Max. glass size2000*3000mm/2500*4000mm/3300*7000mm
Min. glass size400*300mm
Glass thickness12-56mm/12-56mm/12-80mm
Working speed5-40m/min
Air pressure0.6-0.8MPa
Squeeze pressure< 35MPa
Voltage380V50Hz3P
Power15kw/15kw/20kw
Overall dimension6700*2500*3000mm/8700*2500*3500mm/15000*2500*4300mm
Weight4300kg/5000kg/7000kg
