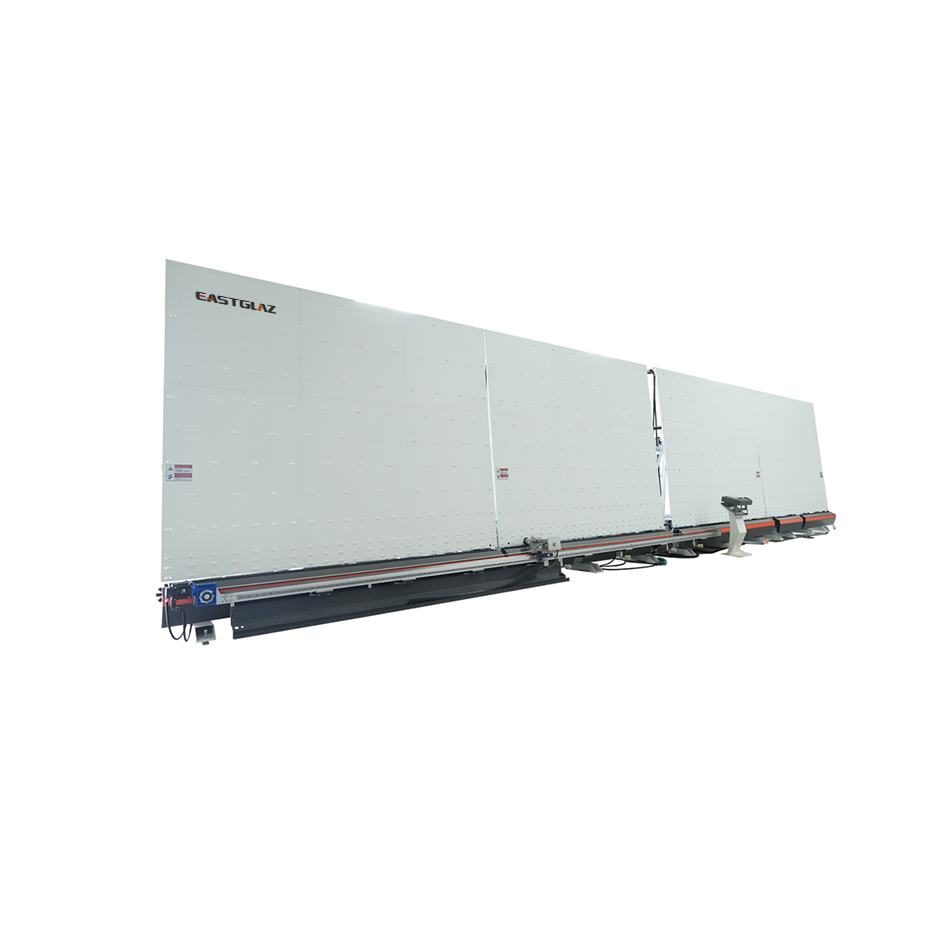

Automatic Insulating Glass Sealing Robot
Insulated Glass Sealing Robot
Max glass size:3300*7000mm
Min glass size:400*300mm
Glass thickness：12-80mm
Automatic glass sealing robot carries out the final sealing of the insulated glass units, Insulating Glass sealing machine automatically can seal double, triple and structural glasses .
Performance
Main feature of Automatic Glass Sealing Robot
• Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass
• Can coat triple glass by one time
• Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
• The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
• Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
• Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
• Japan YASKAWA servo motor and CPU, Siemens low-voltage electrical appliances.
Parameter
Main Technical Parameter
Max.glass size | 3000*7000mm |
Min.glass size | 400*300mm |
Glass thickness | 12-80mm |
Working speed | 5-40m/min |
Air pressure | 0.5-0.7MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 12kw |
Overall dimension | 8000*1500*2700mm |
