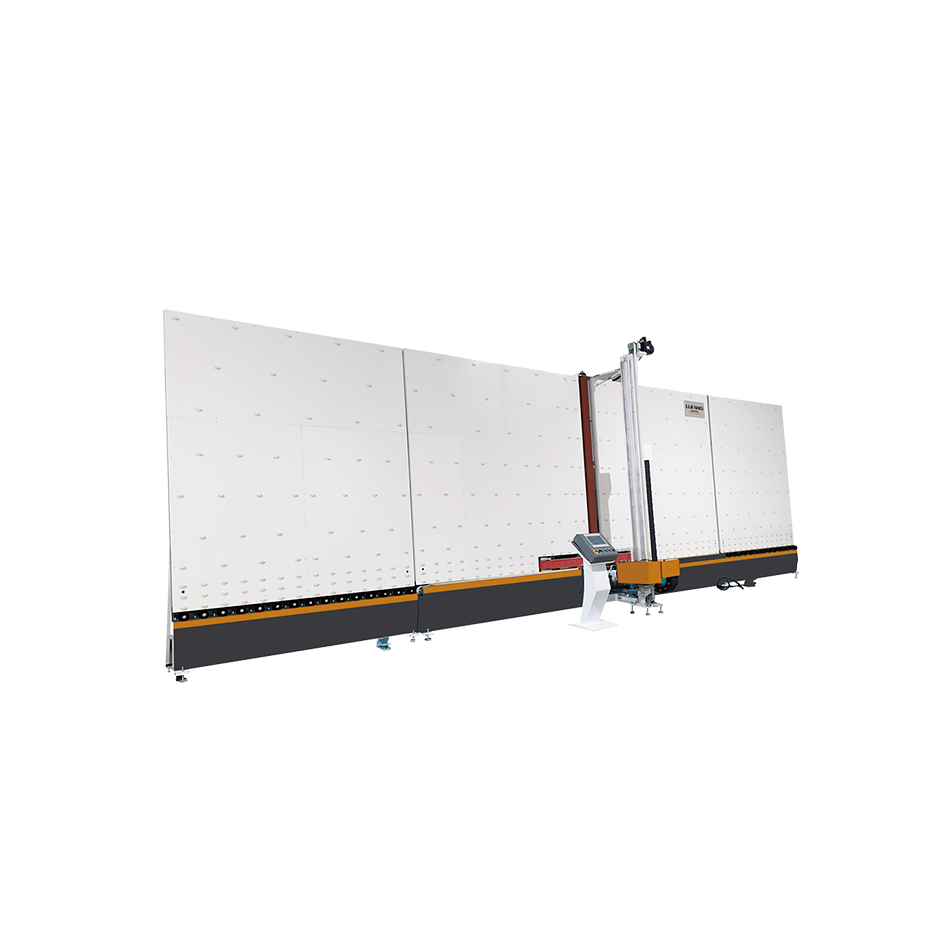

Vertical Low-E Glass Edge Deleting Machine

LJCM2545
Vertical Low-E Glass Edge Deleting Machine

Vertical Low-E Glass Edge Deleting Machine can automatically distinguish Low-E coating and deleting Low-E Glass Edge.

Get Quote Be an Agent

●Six sets of servo motors,British TRIO system
●Inlet-outlet with two-direction,4 directions are available
● Automatically measure glass size
● Automatically distinguish Low-E coating
●The width of edge deletion is adjustable
●PLC control system, touch screen interface
●Intelligent control system, can recognize batch processing

Automatic Vertical low-e glass film deletion machine for making insulating glass is used to delete the film on the Low-e glass with fast speed,To prevent the film from oxidizing when the insulating glass is synthesized.  Low-E Glass Edge Deletion Machine can delete rectangle glass and shape glass, it has 6 servo motors.


Low-e glass types:

Single silver Low-E glass

Single silver Low-E coated glass usually contains only one functional layer (silver layer).  In addition to other metal and compound layers, the total number of coating layers reaches 5.

Double silver Low-E glass

The double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of coating layers reaches 9.  However, the technical process control of double silver Low-E glass is much more difficult than that of single silver.

Feature of Vertical Glass Edge Deleting Machine

Vertical Low-E glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section.  Low-E film deletion machine has 4 kinds of different directions.  Online low-e and outline low-e glass.

The vertical low-e film edge deletion machine can delete the double or triple low-e film.

Voltage380V50Hz3P
Max.glass processing size2500mm*4500mm
Min.glass processing size300*400mm
Glass thickness3-15mm
Edge deleting width10-500mm
Glass conveying speed0-30m/min
Edge deleting speed2-29m/min
Grinding wheel width10/12/15mm
Total power15KW
Dimension9700*2500*3400mm
Weight2600kg
