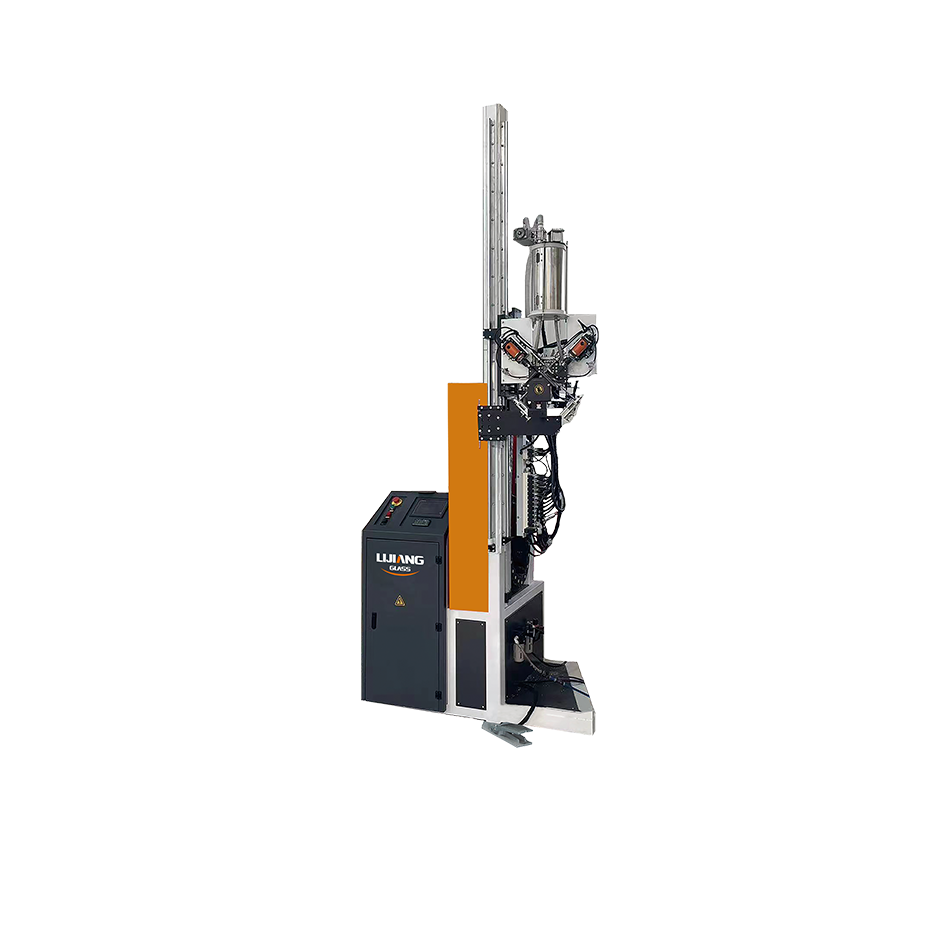

Automatic Desiccant Filling Machine

LJGZ 2020
Automatic Desiccant Filling Machine

Max. frame size:2000mm*2000mm
Min. frame size:300mm*250mm
Aluminum specifications:5.5-26.5mm

Automatic Desiccant Filling Machine can automatically drilling, filling and sealing for Aluminum spacer.

Get Quote Be an Agent

• Germany Siemens PLC control system, stable performance
• Automatically drilling, filling and sealing
• The machine height can be adjusted according to the size of spacer
• Automatically loading and replenish molecular sieve
• Advanced feeding device designed according to the principle of gas flow
• Adopt Industrial plastic spraying treatment of all frames
• Core parts adopts famous imported brand

1. The height of automatic molecular sieve filling machine can be adjusted according to the size of the spacer frame

2.Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.

3.Desiccant filling machine have Protection device for machine head.

4.Molecular sieve filling machine can auto drilling, filling and sealing.

5.Molecular sieve can automatically loading from the Materials bucket.

(When the material was used up the sensor will alarming, desiccant will automatically loading )

6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .

7.All spare parts have ID Number for offering the convenience in after sales service.


Technical parameter of Automatic Molecular Sieve Filling Machine

Max. frame size

2000mm*2000mm (2500mm*2500mm)

Min. frame size

300mm*250mm

Aluminum specifications

5.5-26.5mm

Air source

≥0.65MPa

Power supply and power consumption

AC220V 50Hz 1KW

Molecular sieve diameter needed

0.5-0.9 mm or 1.0 – 1.5mm

Dimension

1100mm*1100mm*3600mm
